EFS106-W Series

< View All Products

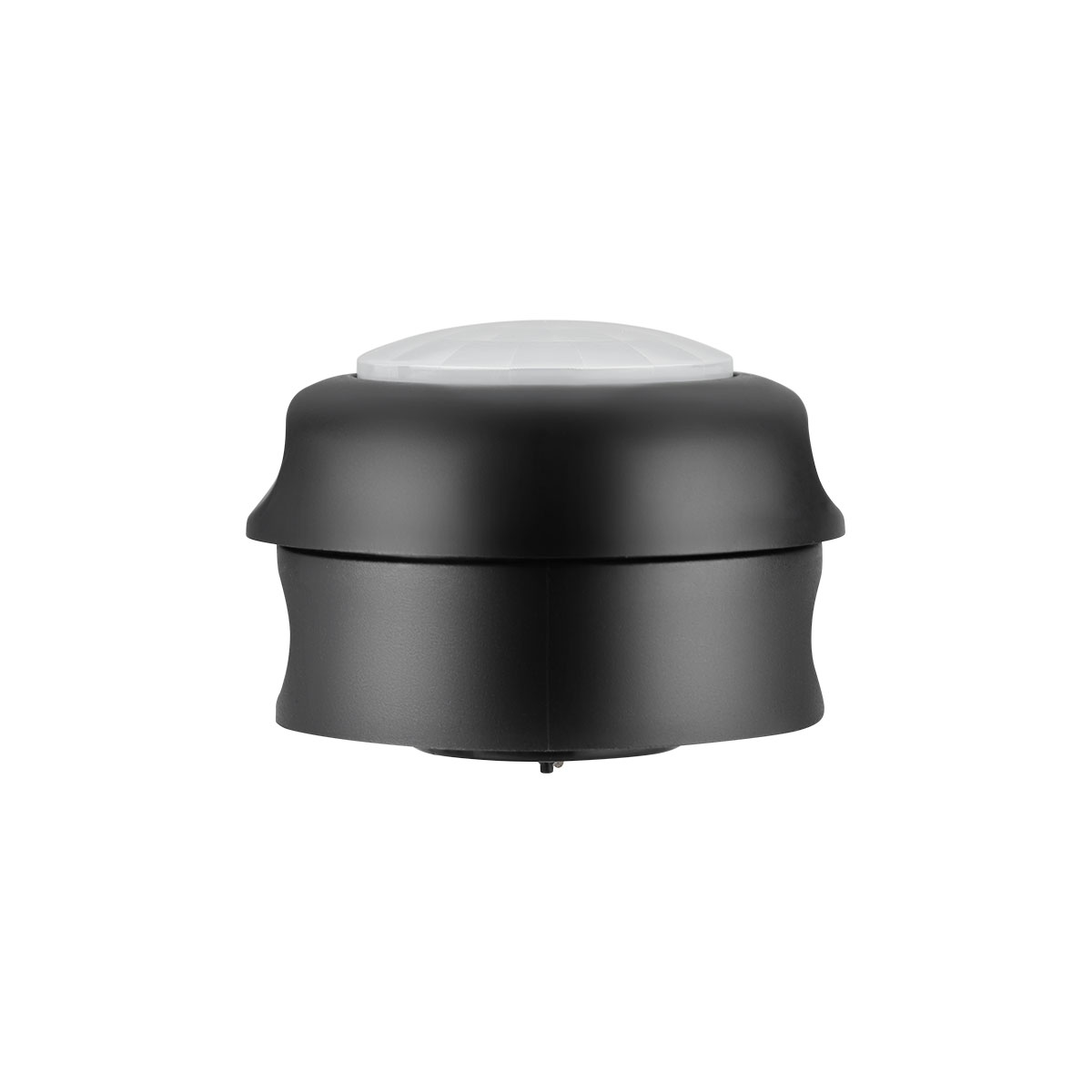

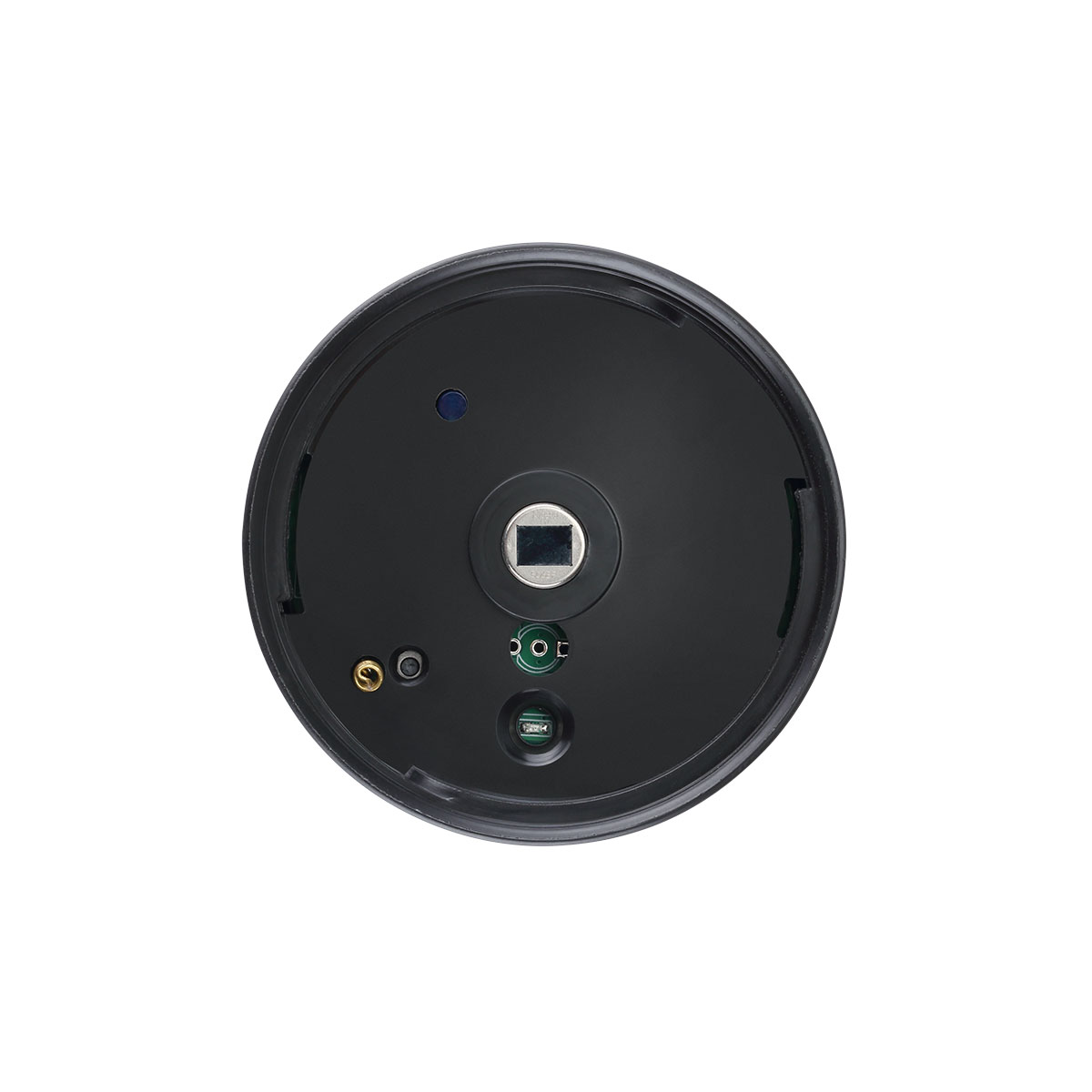

Plug and Play High Bay Long-Range Sensor

SKU: EFS106-BH4-W.B2 Category:

Features & Benefits



  • BH4 twist/lock connector
  • Enhanced long-range antenna with up to 328 ft Bluetooth transmission range
  • Plug and Play 12V sensor with integrated connector
  • PIR analog sensor with AlgoH² algorithm to maximize detection without false triggers
  • Replaceable lens options



Note: Lens sold separately

Specifications

Part Number

EFS106-BH4-W.B2

aaa

aaa

component-type

Sensor

bbb

bbb

Operating Temp

-30 to 55°C (-22°F to 131°F)

technology

Bluetooth v5.0

Radio Frequency

2.4G Hz

range

328ft

input-voltage

12V

aux-voltage

N/A

control

Single 0-10V

dimmability

0-10V

ip-rating

IP66

color-offering

Black

mounting-options

Plug and Play

mounting-height

40ft

application

Outdoor

sensor-type

Daylight Harvesting, PIR

Warranty

5 year limited warranty

certification

CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
