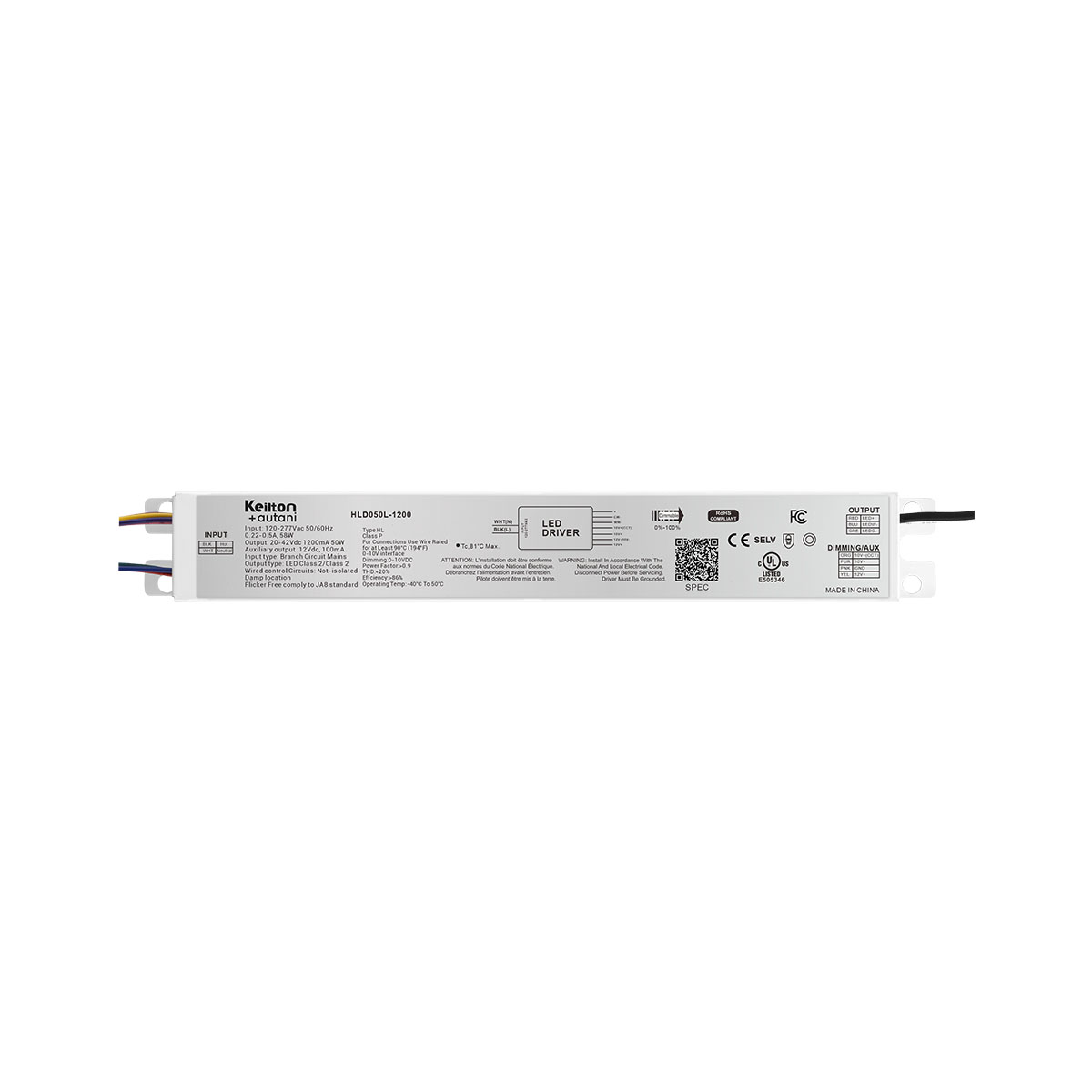

HLD050L Series

Features & Benefits

Dual channel LED driver is ideal for indoor applications. Dimming two channels on LED driver smoothly and flicker-free for every fixture via standard 0-10V signal. Output constant current level can be adjusted by applying 0-10V dimmer, change the fixture’s color temperature and intensity via two 0-10V dimming signal respectively.

• Universal Voltage: 120-277V,50/60Hz
• High Efficiency over86%, Built-in active PFC function >0.9
• Title24/JA8 Standard, Total Flicker free
• LED Class 2 Output, Constant Output Current
• 0-10V Dimming(0%-100%)
• Comply With UL8750 Safety Regulations, Sound Rated Class A
• AUX 12V/0.1A Output
• 5 Year Warranty at Tc≤85
• 0-10V, Resistance for Cold and Warm LED
• Comply With FCC Part15 Class A
• Protections: Short circuit/Over current/Overvoltage
• Compliance to worldwide safety regulations for lighting
• Dry or Damp Location
