Line Voltage 20A BLE Zone Controller with Dry Contact Port
Features & Benefits

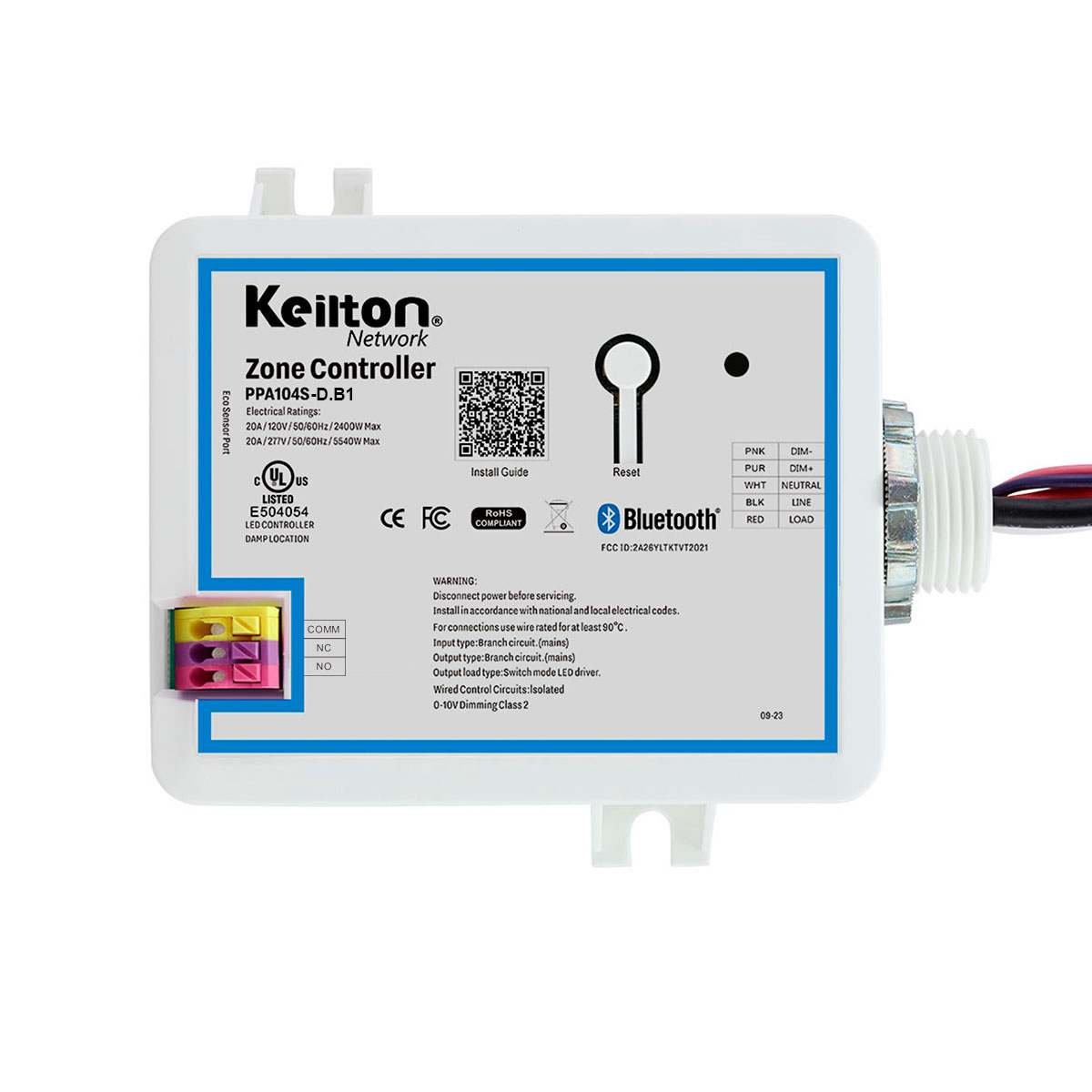

The PPA104S-D is a 20A relay that provides wireless control of multiple light fixtures. Using dry contact output (normal open/normal close), it can also send signals to third-party systems for integration, such as HVAC. The PPA104S-D. B1 model provides an RJ45 port for use with the Keilton+autani Eco Sensor family of products.
- Bluetooth wireless control of luminaries
- Dry contact output, 3A max pass through current
- COMM/NC for normal close, COMM/NO for normal open
- ON/OFF and 0-10V analog dimming control, 48.5mA Sink
- 1HP motor rated
- Plenum Rated
- RJ45 port for use with Keilton+autani Eco Sensors (PPA104S-D.B1)
Specifications
Part Number
PPA104S-D.B1
component-type
Controller
technology
Bluetooth v5.0
Radio Frequency
2.4G Hz
range
200ft
input-voltage
120-277V
control
Dry Contact, Relay, Single 0-10V
dimmability
0-10V
color-offering
White
application
Indoor
sensor-type
Eco Sensor Port
Warranty
5 year limited warranty
certification
CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
