Plug and Play Long-Range Controller Node
Features & Benefits

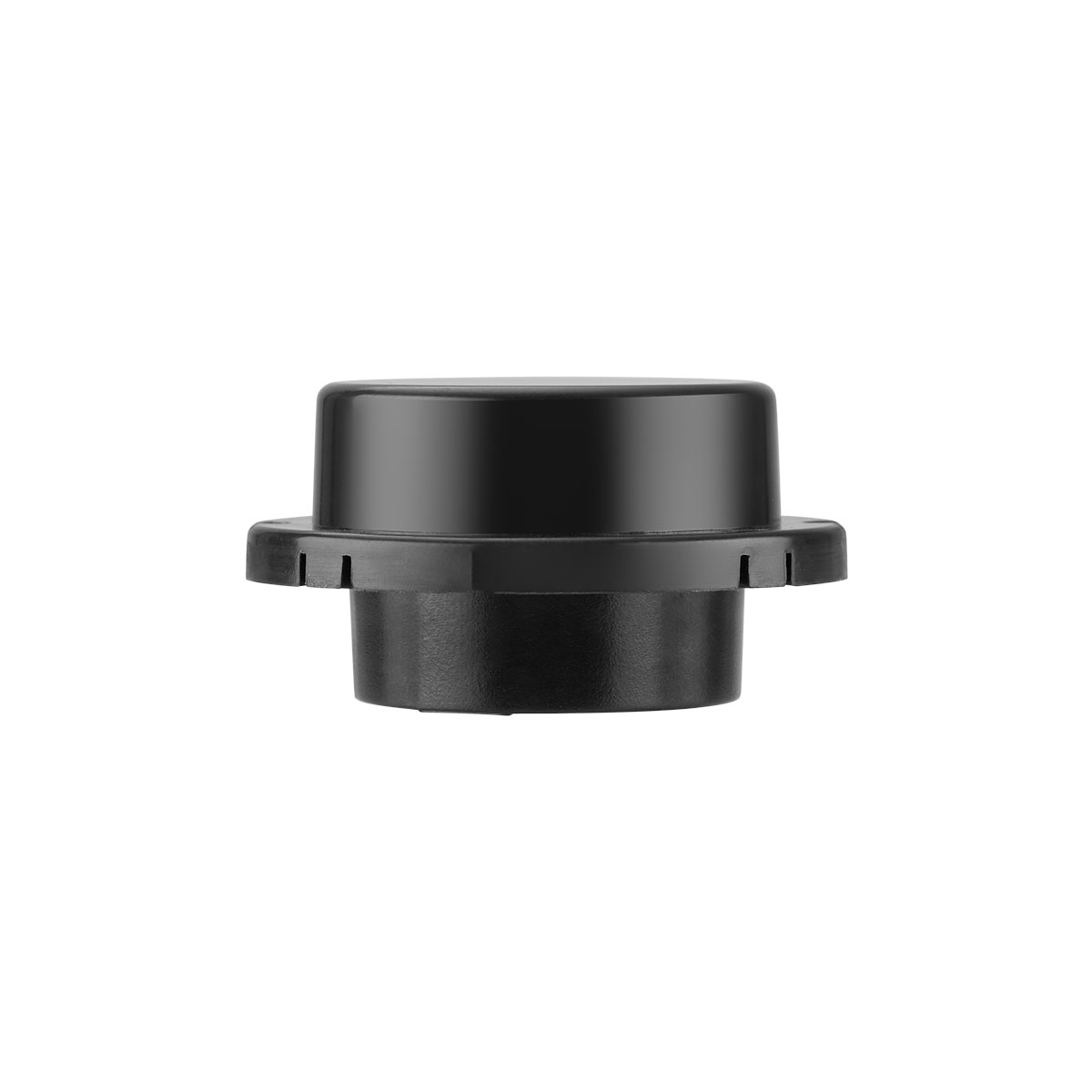

WPPA102-W has enhanced antenna with 328ft transmit distance, is ideal for outdoor applications, with longer distances between system nodes. Outdoor IP66-rated controller housing features a black finish designed to complement commercial outdoor luminaires, with nylon UV-rated material.
- Z10 Zhaga connector
- Plug and Play 12V sensor with integrated connector
- Enhanced long-range antenna with up to 328 ft Bluetooth transmission range
- BT node without sensor allows control from app or linkage to other sensors
Note:
- Requires Dim-to-Off LED drivers
- Requires Keilton BH4W receptacle
Specifications
Part Number
WPPA102-Z10-W.B1
aaa
aaa
component-type
Controller
bbb
bbb
technology
Bluetooth v5.0
Radio Frequency
2.4G Hz
range
200ft
input-voltage
12V
aux-voltage
N/A
control
Single 0-10V
dimmability
0-10V
color-offering
Black
mounting-height
N/A
application
Outdoor
sensor-type
N/A
Warranty
5 year limited warranty
certification
CE compliant, cULus Listed, DLC listed, FCC, RoHs, UL1376 Gold
